SMA Male to N Male Cable Using RG188 Coax

Product ID: PE3911

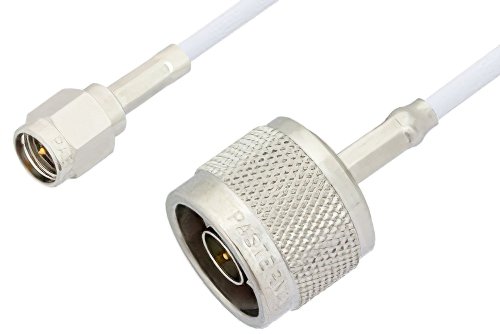

SMA Male to N Male Cable Using RG188 Coax

Image Views:  SMA Male to N Male Cable Using RG188 Coax high resolution
Zoom


Click for:PE3911 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG188A/U
RF Cable TypeRG188
RF Cable Impedance50


SMA Male to N Male Cable Using RG188 Coax

PE3911 is a SMA male to type N male cable using RG188 coax. This Pasternack SMA male to N type male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm type N for connector 2.

Our male SMA to male type N cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3911 SMA male to type N male cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
