Type N Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

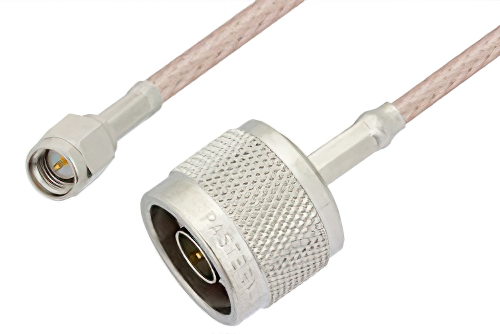

SMA Male to N Male Cable 36 Inch Length Using RG316-DS Coax

Product ID: PE3957-36
SMA Male to N Male Cable 36 Inch Length Using RG316-DS Coax

Image Views:  SMA Male to N Male Cable 36 Inch Length Using RG316-DS Coax high resolution
Zoom


Click for:PE3957-36 Datasheet
Available Quantity: Call for Availability
Standard Lengths
12 in.24 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Pricing Table
QUANTITYPRICE
1-24$46.60
25-49$44.27
50-99$41.94
100-249$40.08
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50


SMA Male to N Male Cable 36 Inch Length Using RG316-DS Coax

PE3957-36 is a SMA male to type N male cable using RG316-DS coax. This Pasternack SMA male to type N male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm type N for connector 2.

Our male SMA to male type N cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3957-36 SMA male to N type male cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
