Reverse Polarity SMA Male to N Male Cable Using RG58 Coax

Product ID: PE34727

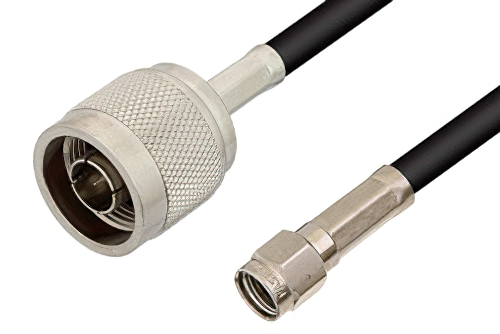

Reverse Polarity SMA Male to N Male Cable Using RG58 Coax

Image Views:  Reverse Polarity SMA Male to N Male Cable Using RG58 Coax high resolution
Zoom


Click for:PE34727 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Reverse Polarity
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG58C/U
RF Cable TypeRG58
RF Cable Impedance50


Reverse Polarity SMA Male to N Male Cable Using RG58 Coax

PE34727 is a reverse polarity SMA male to N type male cable using RG58 coax. This Pasternack reverse polarity SMA male to type N male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm type N for connector 2.

Our reverse polarity male SMA to male type N cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34727 SMA reverse polarity male to N type male cable assembly is constructed with RG58 coax.
