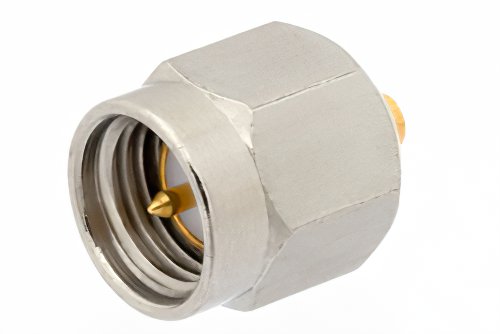

PE44757 SMA male coaxialconnector has an interface type of SMA male which is compatible with PE-047SR, PE-SR047AL and PE-SR047FL cables and has an impedance of 50 Ohms. Pasternack’s SMA male connector uses solder/solder as an attachment method. Our male SMA coaxial connector provides a maximum frequency of 18 GHz. This SMA male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack SMA male coaxialconnector has a PTFE dielectric type and a VSWR of 1.2:1. Pasternack’s SMA coaxial connector has a brass body with gold plating. Our PE44757 SMA connector uses a gold over nickel-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. Our high-quality PE44757 features a MIL-G-45204 body plating specification. The PE44757 SMA connector operates at a temperature range of -55 to 100 deg C. This threaded male SMA coaxial RF connector has a maximum insertion loss of 0.26 dB. This SMA connector has a gold over nickel inner contact plating. Our SMA male connector has a length of 0.437 inches, a width of 0.312 inches, and a weight of 0.012 lbs.
This Pasternack male SMA connector will ship the same business day as purchased. Our SMA male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
