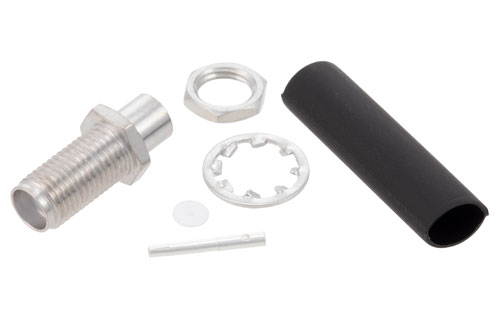

PE45835 SMA female bulkhead coaxial connector has an interface type of SMA female PE-SR402FL, PE-SR402FLJ, RG402, and PE-SR402AL and a 50 Ohm impedance. Pasternack's SMA female bulkhead connector uses solder/solder as an attachment method. Our female SMA coaxial connector provides a maximum frequency of 6 GHz.
The Pasternack SMA female bulkhead coaxial connector has a PTFE dielectric type and a VSWR of 1.2:1. Pasternack's SMA coaxial connector has a brass body with tri-metal plating. Our PE45835 SMA connector uses a silver-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The Pasternack PE45835 SMA bulkhead low PIM connector operates at a temperature range of -40 to 155 deg C.
This Pasternack low PIM female SMA bulkhead connector will ship the same business day as purchased. Our bulkhead SMA female connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
