SMA Male to QMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male to QMA Male Cable Using PE-C195 Coax

Product ID: PE38116

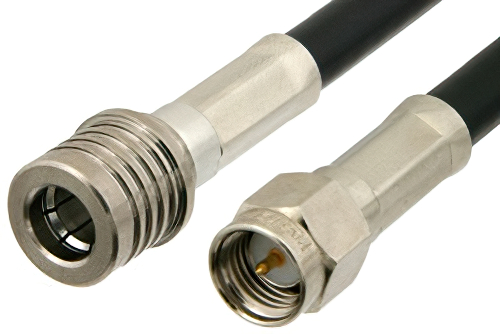

SMA Male to QMA Male Cable Using PE-C195 Coax

Image Views:  SMA Male to QMA Male Cable Using PE-C195 Coax high resolution
Zoom


Click for:PE38116 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2QMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-C195
RF Cable TypePE-C195
RF Cable Impedance50


SMA Male to QMA Male Cable Using PE-C195 Coax

PE38116 is a SMA male to QMA male cable using PE-C195 coax. This Pasternack SMA male to QMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm QMA for connector 2.

Our male SMA to male QMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE38116 SMA male to QMA male cable assembly is constructed with PE-C195 coax and the maximum VSWR is 1.4:1.
