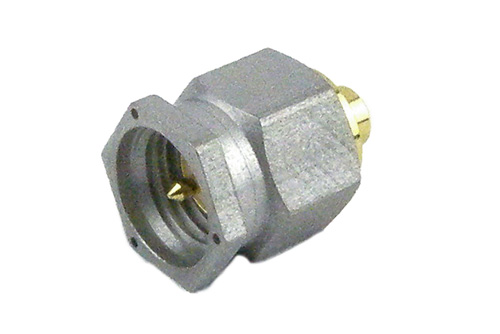

M39012/79-3007 SMA male coaxial connector is a QPL listed part that has an interface type of RG405 and a 50 Ohm impedance. Pasternack's SMA male connector uses solder/solder as an attachment method. Our male SMA coaxial connector provides a maximum frequency of 18 GHz.
The Pasternack SMA male coaxial connector has a PTFE dielectric type and a VSWR of 1.25:1. Pasternack's SMA coaxial connector has a stainless steel body with gold plating. Our M39012/79-3007 SMA connector uses beryllium copper inner contact and stainless steel outer contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
This SMA connector has a gold inner contact plating and a gold outer contact plating. The Pasternack SMA male connector has a dielectric withstanding voltage of 1,000 Vrms.
This Pasternack male SMA connector will ship the same business day as purchased. Our SMA male connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
