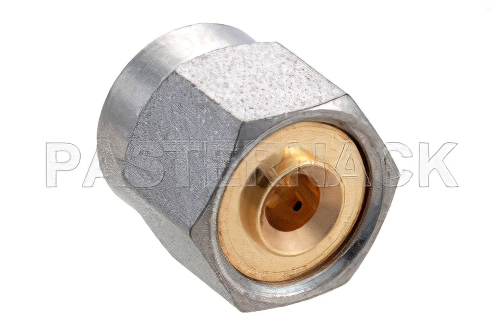

SMA Male Connector Solder Attachment for RG405, RG405 Tinned, PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN

Product ID: PE45480

Pricing

QuantityPrice
1-24$47.68
25-49$45.30
50-99$42.91
100-249$41.00
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 123
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMA
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency26.5 GHz
Interface Type 1RG405
Interface Type 2RG405 Tinned
Interface Type 3PE-SR405AL
Interface Type 4PE-SR405FL
Interface Type 5PE-SR405FLJ
Interface Type 6PE-SR405TN

Description

SMA Male Connector Solder Attachment for RG405, RG405 Tinned, PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN

PE45480 SMA male coaxial connector has an interface type of RG405, RG405 Tinned, PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN and a 50 Ohm impedance. Pasternack SMA male connector uses shield/contact solder as an attachment method. Our male SMA coaxial connector provides a minimum frequency of DC and a maximum frequency of 26.5 GHz.

The Pasternack SMA male coaxial connector has a PTFE dielectric type and a VSWR of 1.14. The Pasternack SMA coaxial connector has a beryllium copper body with gold plating. Our PE45480 SMA connector uses beryllium copper contact. This SMA male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male SMA connector will ship the same day as purchased. Our SMA male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMA connector cable assemblies that will ship the same day as well.
