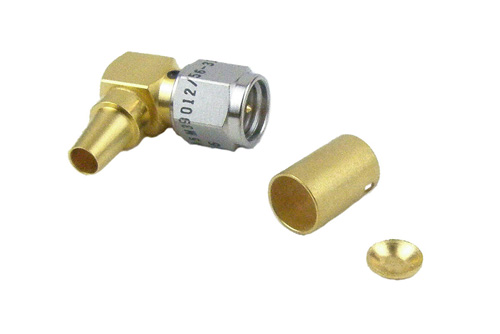

M39012/56-3109 SMA male right angle coaxial connector is a QPL listed part that has an interface type of RG55, RG142, RG223 and RG400 and a 50 Ohm impedance. Pasternack's SMA male connector uses crimp/solder as an attachment method. Our male SMA right angle coaxial connector provides a maximum frequency of 12.4 GHz.
The Pasternack right angle SMA male coaxial connector has a PTFE dielectric type and a VSWR of 1.25:1. Pasternack's SMA coaxial connector has a stainless steel body with gold plating. Our M39012/56-3109 SMA right angle connector uses beryllium copper inner contact and stainless steel outer contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
This right angle SMA connector has a gold inner contact plating and a gold outer contact plating.
This Pasternack right angle male SMA connector will ship the same business day as purchased. Our SMA right angle male connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
