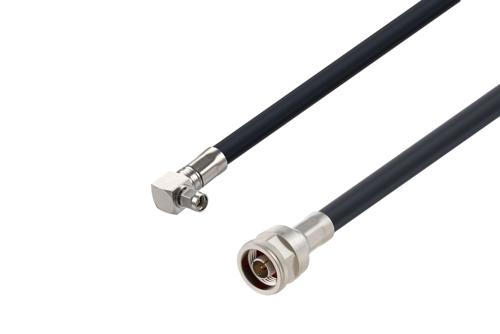

Pasternack’s PE3W20709 low loss right angle SMA male to type N male RF cable assembly using LMR-400 coax is part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. These coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, defense/military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The SMA male to type N male cable, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to type N cable assembly orders will ship the same business day as well.
Pasternack RF coax low loss cable assembly is built with a right angle SMA cable connection on one end and a type N cable connection on the other. Our SMA to type N cable assembly has a male gender on end 1 and a male on end 2. PE3W20709 can also be known as a low loss right angle SMA plug to type N plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad aluminum as the cable’s inner conducting material and PE (F) dielectric type.
This cable assembly employs durable and flexible materials, and with a 4-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W20709 RF cable has a PE jacket of 0.405-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 85% and a minimum RF shielding of 90 dB. Our right angle SMA male to type N male cable has a maximum VSWR of 1.4:1.
This PE3W20709 SMA plug to type N plug cable assembly is built with LMR-400, which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with right angle SMA to type N cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body with tri-metal plating. Additional dimensions, specifications, and CAD drawings for this low loss RF cable are available on our downloadable PDF datasheet. PE3W20709 can also be used in the other direction and will be a type N male to right angle SMA male cable assembly if the opposite connectivity is required.
This low loss SMA right angle plug to type N plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to type N cable assembly for quick shipment worldwide. Variations of SMA and type N cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High-quality custom RF cable assembly products for microwave and millimeter wave radio transmitters, receivers, antenna jumpers, component interconnections, RF test and measurement labs, military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment, and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to type N low loss RF cable assembly as per your requirements.LMR® is a registered trademark of Times Microwave Systems.
