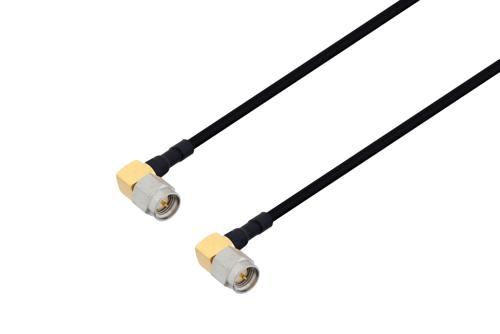

Radio frequency assembly SMA male right angle to SMA male right angle cable using PE-SR402FLJ coax with 90 deg. clock from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMA male right angle to SMA male right angle cable using PE-SR402FLJ coax with 90 deg. clock, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to SMA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a right angle SMA cable connection on one end and a right angle SMA cable connection on the other. Our right angle SMA to right angle SMA cable assembly has a male gender on end 1 and a male on end 2. PE39438/PH90 can also be known as a right angle SMA plug to right angle SMA plug cable assembly and will be shipped the same day as it is purchased. This formable RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1.575-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE39438/PH90 RF cable has a FEP jacket of 0.161-inch diameter. The formable RF cable has an in-series connection. This cable assembly has a typical propagation velocity of 70% and a minimum RF shielding of 100 dB. Our right angle SMA male to right angle SMA male cable has a maximum VSWR of 1.4:1.
SMA plug to SMA plug cable assembly PE39438/PH90 is built with PE-SR402FLJ which is a formable coax type. The Pasternack formable SMA cable assembly is manufactured with right angle SMA to right angle SMA cable connectors, has a 50 Ohm impedance. Both the connectors have a solder/solder attachment method and a brass body with gold over nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet.
SMA right angle plug to SMA right angle plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to SMA cable assembly for quick shipment worldwide. Variations of SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to SMA RF cable assembly as per your requirements.
