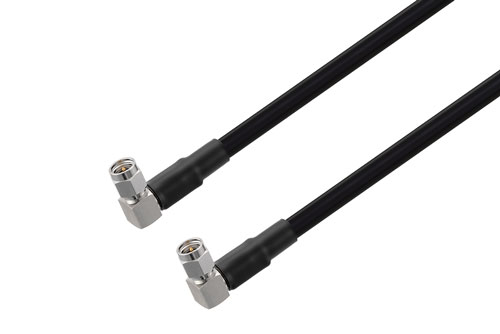

Radio frequency assembly SMA male right angle to SMA male right angle low loss cable using LMR-240 coax with Times Microwave components from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The SMA male right angle to SMA male right angle low loss cable using LMR-240 coax with Times Microwave components, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to SMA cable assembly orders will the ship same business day as well.
Pasternack RF coax low loss cable assembly is built with right angle a SMA cable connection on one end and right angle a SMA cable connection on the other. Our low loss right angle a SMA to right angle a SMA cable assembly has male gender on end 1 and male on end 2. PE3C0148 can also be known as a low loss right angle SMA plug to right angle SMA plug cable assembly and will be shipped the same day as it is purchased. This RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PE (F) dielectric type.
This cable assembly employs durable and flexible materials, and with a 2.5-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C0148 RF cable has a PE jacket of 0.240-inch diameter. The flexible RF cable has an in-series connection. This cable assembly has a typical propagation velocity of 84% and a minimum RF shielding of 90 dB.
SMA plug to SMA plug cable assembly PE3C0148 is built with LMR-240 which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with right angle SMA to right angle SMA cable connectors and has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a passivated stainless steel body. Additional dimensions, specifications and CAD drawings for this low loss RF cable are available on our downloadable PDF datasheet.
Low loss SMA right angle plug to SMA right angle plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to SMA cable assembly for quick shipment worldwide. Variations of SMA cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to SMA low loss RF cable assembly as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
