SMA Female to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Female to 18 GHz ,RoHS

Product ID: PE3TC0102

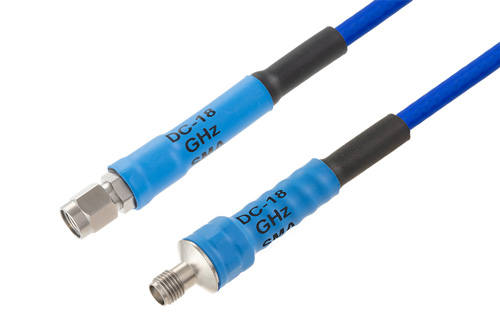

PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Female to 18 GHz ,RoHS

Image Views:  PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Female to 18 GHz ,RoHS high resolution
Zoom


Click for:PE3TC0102 Datasheet
Click for:PE3TC0102 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
24 in.48 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-80TEST
RF Cable TypePE-TC195
RF Cable Impedance50


PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Female to 18 GHz ,RoHS

PE3TC0102 is a SMA male to SMA female cable using PE-TC195 coax. This Pasternack SMA male to SMA female cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to female SMA cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3TC0102 SMA male to SMA female cable assembly is constructed with PE-TC195 coax and the maximum VSWR is 1.25:1.
