SMA to SMA Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

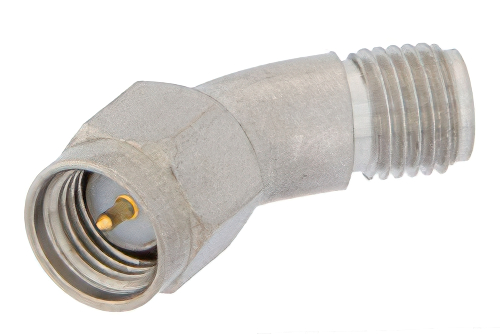

SMA Male to SMA Female 45 Degree Right Adapter

Product ID: PE9381
SMA Male to SMA Female 45 Degree Right Adapter

Image Views:  SMA Male to SMA Female 45 Degree Right Adapter high resolution
Zoom


Click for:PE9381 Datasheet
Click for:PE9381 RoHS Cert
DISCONTINUED PRODUCT
Replaced By: PE91332

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max26 GHz
Adapter Body Style45 Degree Right
Connector Mount Method 1None
Connector Body Material 1Passivated Stainless Steel
Connector Mount Method 2None
Connector Body Material 2Passivated Stainless Steel


SMA Male to SMA Female 45 Degree Right Adapter

SMA adapter PE9381 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to SMA adapter is a in-series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 26 GHz.

SMA male to SMA female adapter is one of the many RF components that ship same day as they are ordered. PE9381 male SMA to female SMA adapter has a 45 degree right body. This Pasternack 45 degree right SMA coax adapter is a 45 degree angle RF adapter.

Our male SMA to female SMA adapter PE9381 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMA to SMA radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
