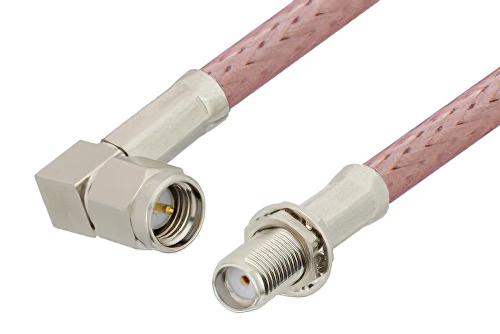

SMA Male Right Angle to SMA Female Bulkhead Cable Using RG142 Coax

Product ID: PE3759

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	SMA
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50
RF Cable Part Number	RG142B/U
RF Cable Type	RG142
RF Cable Impedance	50

Description

SMA Male Right Angle to SMA Female Bulkhead Cable Using RG142 Coax

PE3759 is a SMA male right angle to SMA female bulkhead cable using RG142 coax. This Pasternack SMA male right angle to SMA female bulkhead cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2. SMA right angle to SMA coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to female SMA bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3759 SMA male right angle to SMA female bulkhead cable assembly is constructed with RG142 coax and the maximum VSWR is 1.4:1.
