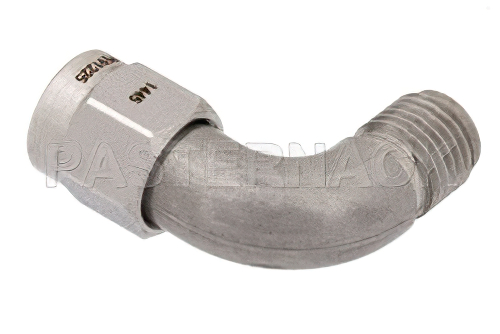

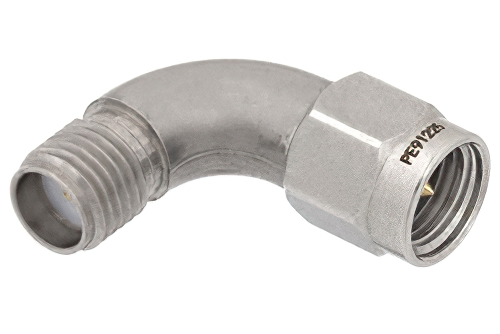

SMA Male to SMA Female Radius Right Angle Adapter, Functional Up to 18 GHz

Product ID: PE91225
SMA Male to SMA Female Radius Right Angle Adapter, Functional Up to 18 GHz


Image Views:  SMA Male to SMA Female Radius Right Angle Adapter, Functional Up to 18 GHz high resolution
Zoomalternate image
View 2


Click for:PE91225 Datasheet
Click for:PE91225 RoHS Cert
Click for:PE91225 REACH Cert
Available Quantity: 3,193
Pricing Table
Price: $62.62
Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max18 GHz
Adapter Body StyleRadius Right Angle
Connector Mount Method 1None
Connector Body Material 1Passivated Stainless Steel
Connector Mount Method 2None


SMA Male to SMA Female Radius Right Angle Adapter, Functional Up to 18 GHz

SMA adapter PE91225 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to SMA adapter is a in-series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 18 GHz.

SMA male to SMA female adapter is one of the many RF components that ship same day as they are ordered. PE91225 male SMA to female SMA adapter has a radius right angle body. This Pasternack radius right angle SMA coax adapter is a 90 degree swept elbow adapter.

Our male SMA to female SMA adapter PE91225 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This functional up to 18 GHz SMA to SMA radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
