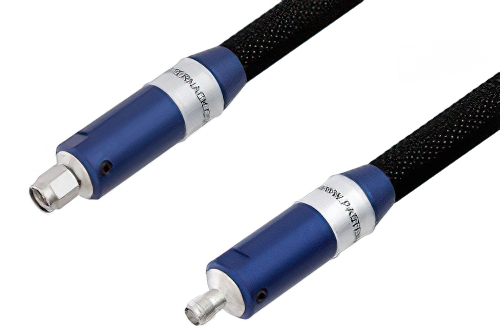

VNA Ruggedized Test Cable SMA Male to SMA Female 18GHz, RoHS

Product ID: PE3VNA1802
VNA Ruggedized Test Cable SMA Male to SMA Female 18GHz, RoHS

Image Views:  VNA Ruggedized Test Cable SMA Male to SMA Female 18GHz, RoHS high resolution
Zoom


Click for:PE3VNA1802 Datasheet
Click for:PE3VNA1802 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
24 in.48 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-VNA-R
RF Cable TypePE-VNA-R
RF Cable Impedance50


VNA Ruggedized Test Cable SMA Male to SMA Female 18GHz, RoHS

PE3VNA1802 is a SMA male to SMA female cable using PE-VNA-R coax. This Pasternack SMA male to SMA female cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to female SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3VNA1802 SMA male to SMA female cable assembly is constructed with PE-VNA-R coax and the maximum VSWR is 1.25:1.
