SMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

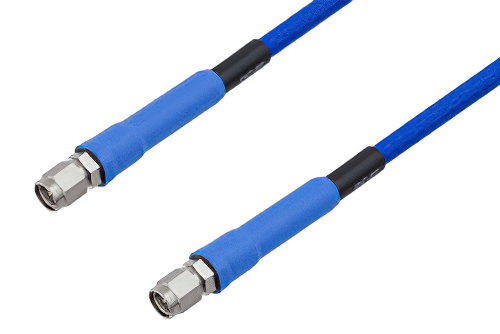

PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Male to 27 GHz 72 Inch Length ,RoHS

Product ID: PE3TC0201-72
PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Male to 27 GHz 72 Inch Length ,RoHS

Image Views:  PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Male to 27 GHz 72 Inch Length ,RoHS high resolution
Zoom


Click for:PE3TC0201-72 Datasheet
Click for:PE3TC0201-72 RoHS Cert
Available Quantity: 8
Standard Lengths
24 in.48 in.
Pricing Table
QUANTITYPRICE
1-4$602.28
5-9$572.17
10-24$542.05
25+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-80TEST
RF Cable TypePE-TC195
RF Cable Impedance50


PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Male to 27 GHz 72 Inch Length ,RoHS

PE3TC0201-72 is a SMA male to SMA male cable using PE-TC195 coax. This Pasternack SMA male to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to male SMA cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3TC0201-72 SMA male to SMA male cable assembly is constructed with PE-TC195 coax and the maximum VSWR is 1.25:1.
