SMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

PE-TC151 Series Phase Stable Test Cable SMA Male to SMA Male to 27 GHz ,RoHS

Product ID: PE3TC0401

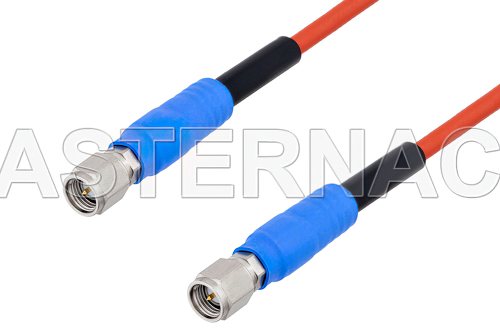

PE-TC151 Series Phase Stable Test Cable SMA Male to SMA Male to 27 GHz ,RoHS


Image Views:  PE-TC151 Series Phase Stable Test Cable SMA Male to SMA Male to 27 GHz ,RoHS high resolution
Zoomalternate image
View 2


Click for:PE3TC0401 Datasheet
Click for:PE3TC0401 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
24 in.48 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-90TEST
RF Cable TypePE-TC151
RF Cable Impedance50


PE-TC151 Series Phase Stable Test Cable SMA Male to SMA Male to 27 GHz ,RoHS

PE3TC0401 is a SMA male to SMA male cable using PE-TC151 coax. This Pasternack SMA male to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to male SMA cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3TC0401 SMA male to SMA male cable assembly is constructed with PE-TC151 coax and the maximum VSWR is 1.3:1.
