SMA Male to SMA Male Right Angle 18 GHz Cables

Check out our new RF calculators & conversion tools...

SMA Male to SMA Male Right Angle Precision Cable Using 160 Series Coax, RoHS

Product ID: PE301
SMA Male to SMA Male Right Angle Precision Cable Using 160 Series Coax, RoHS

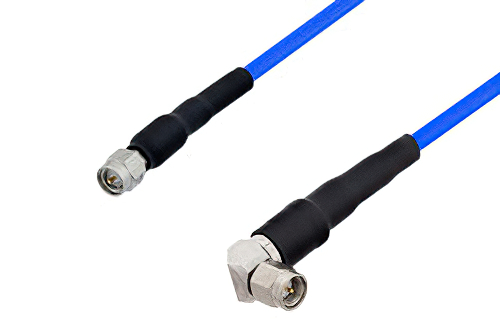

Image Views:  SMA Male to SMA Male Right Angle Precision Cable Using 160 Series Coax, RoHS high resolution
Zoom


Click for:PE301 Datasheet
Click for:PE301 RoHS Cert
DISCONTINUED PRODUCT
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.120 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-160 Series
RF Cable Type160 Series
RF Cable Impedance50


SMA Male to SMA Male Right Angle Precision Cable Using 160 Series Coax, RoHS

PE301 is a SMA male to SMA male right angle cable using 160 Series coax. This Pasternack SMA male to SMA male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2. SMA to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA to male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE301 SMA male to SMA male right angle cable assembly is constructed with 160 Series coax and the maximum VSWR is 1.4:1.
