SMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male to SMA Male Cable Using LMR-100 Coax And Times Connectors

Product ID: PE3C0113

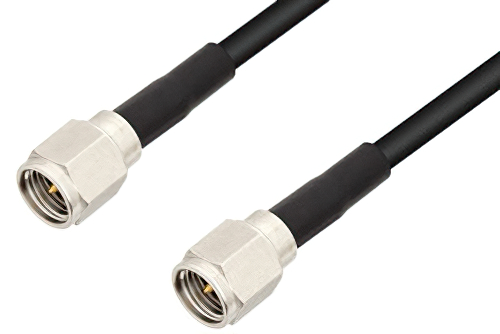

SMA Male to SMA Male Cable Using LMR-100 Coax And Times Connectors

Image Views:  SMA Male to SMA Male Cable Using LMR-100 Coax And Times Connectors high resolution
Zoom


Click for:PE3C0113 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberLMR-100A-PVC
RF Cable TypeLMR-100A
RF Cable Impedance50


SMA Male to SMA Male Cable Using LMR-100 Coax And Times Connectors

PE3C0113 is a SMA male to SMA male cable using LMR-100A coax. This Pasternack SMA male to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C0113 SMA male to SMA male cable assembly is constructed with LMR-100A coax.

* LMR™ is a trademark of Times Microwave Systems.
