SMA Male to SMA Male Right Angle Cable Using PE-047SR Coax

Product ID: PE3230
SMA Male to SMA Male Right Angle Cable Using PE-047SR Coax

Image Views:  SMA Male to SMA Male Right Angle Cable Using PE-047SR Coax high resolution
Zoom


Click for:PE3230 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-047SR
RF Cable TypePE-047SR
RF Cable Impedance50

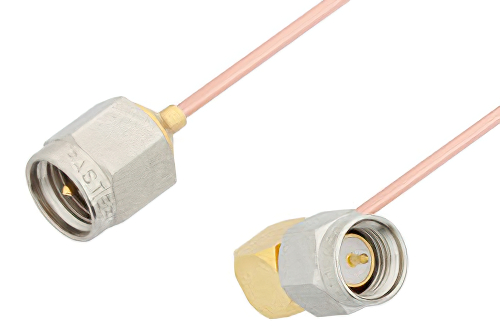

SMA Male to SMA Male Right Angle Cable Using PE-047SR Coax

PE3230 is a SMA male to SMA male right angle cable using PE-047SR coax. This Pasternack SMA male to SMA male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2. SMA to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA to male SMA right angle cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3230 SMA male to SMA male right angle cable assembly is constructed with PE-047SR coax.
