SMA Male Right Angle to SMA Male Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

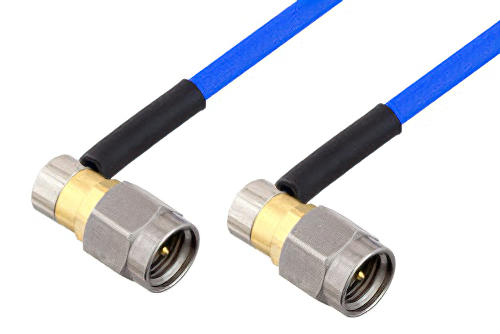

SMA Male Right Angle to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS

Product ID: PE3CA1041
SMA Male Right Angle to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS

Image Views:  SMA Male Right Angle to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS high resolution
Zoom


Click for:PE3CA1041 Datasheet
Click for:PE3CA1041 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.50 cm.100 cm.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P086EAM
RF Cable TypePE-086FLEX
RF Cable Impedance50


SMA Male Right Angle to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS

PE3CA1041 is a SMA male right angle to SMA male right angle cable using PE-086FLEX coax. This Pasternack SMA male right angle to SMA male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2. SMA right angle to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1041 SMA male right angle to SMA male right angle cable assembly is constructed with PE-086FLEX coax and the maximum VSWR is 1.4:1.
