SMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

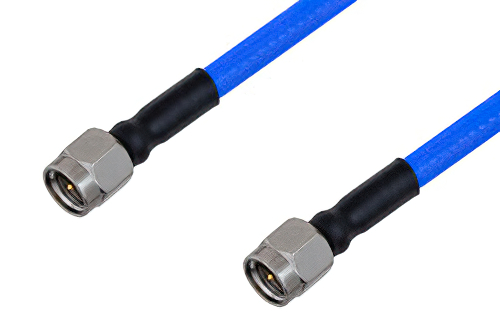

SMA Male to SMA Male Cable Using PE-P141FLX Coax , LF Solder

Product ID: PE3CA1035
SMA Male to SMA Male Cable Using PE-P141FLX Coax , LF Solder

Image Views:  SMA Male to SMA Male Cable Using PE-P141FLX Coax , LF Solder high resolution
Zoom


Click for:PE3CA1035 Datasheet
Click for:PE3CA1035 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.50 cm.100 cm.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P141EAM
RF Cable TypePE-141FLEX
RF Cable Impedance50


SMA Male to SMA Male Cable Using PE-141FLEX Coax, RoHS

PE3CA1035 is a SMA male to SMA male cable using PE-141FLEX coax. This Pasternack SMA male to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1035 SMA male to SMA male cable assembly is constructed with PE-141FLEX coax and the maximum VSWR is 1.4:1.
