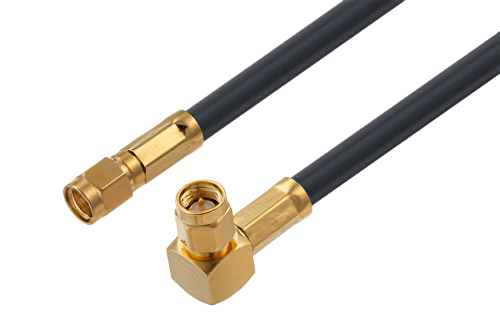

SMA Male to SMA Male Right Angle Cable 48 Inch Length Using PE-C240 Coax

Product ID: PE38624-48

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$47.19
25-49$44.83
50-99$42.47
100-249$40.58
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Call for Availability
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberPE-C240
RF Cable TypePE-C240
RF Cable Impedance50 Ohm
Length48 inches

Description

SMA Male to SMA Male Right Angle Cable 48 Inch Length Using PE-C240 Coax

The PE38624-48 is an SMA male to SMA male right angle cable assembly designed for PE-C240 coax, offering 50 Ohm impedance. It supports RF system integration where angled cable exits help route connections through tighter equipment layouts and reduce connector strain. Brass connector bodies, gold-plated contacts, Teflon dielectrics, and flexible PE-C240 coax support dependable interconnect performance in compact assemblies.

Pasternack RF coax low loss cable assembly is built with SMA cable connection on one end and right angle SMA cable connection on the other. Our low loss SMA to right angle SMA cable assemblies have a male gender on end 1 and male on end 2. This SMA to SMA cable is a male to male coax assembly, PE38624-48, can also be known as a low loss SMA plug to right angle SMA plug cable assembly and will be shipped same-day as it is purchased.

SMA plug to SMA plug cable assembly PE38624-48 is built with PE-C240 which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to right angle SMA cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this SMA male to SMA right angle male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE38624-48 can also be used in the other direction and will be right angle SMA male to SMA male cable assembly if the opposite connectivity is required.

Low loss SMA plug to SMA right angle plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality SMA to SMA cable assembly for quick shipment worldwide. Variations of SMA cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this SMA male to SMA male right angle cable 48 inch length using PE-C240 coax.

Frequently Asked Questions

What is the PE38624-48 RF cable assembly used for?

The PE38624-48 is an SMA male to SMA male right angle cable assembly used for 50 Ohm RF interconnects in compact equipment. It uses PE-C240 flexible coax, dual right angle connectors, brass bodies, gold-plated contacts, and Teflon dielectrics for cable routing flexibility. Engineers use it in RF system integration when straight connector exits would interfere with panels, nearby assemblies, or enclosure walls. This configuration is useful for bench setups, embedded electronics, and general coax connections that need cleaner cable management around SMA ports.

When should I choose a right angle SMA cable instead of a straight cable?

A right angle SMA cable like PE38624-48 is a practical choice when equipment space is limited around the connector interface. Its dual right angle design helps route PE-C240 coax away from bulkheads, modules, and instrument faces with less immediate bend stress. Engineers often choose this layout in dense electronics assemblies, test fixtures, and enclosed RF systems that need tighter cable paths. It is especially helpful when straight SMA connectors would extend too far outward or create less controlled cable routing inside a chassis.

Is the PE38624-48 compatible with standard SMA interfaces?

The PE38624-48 is built with standard polarity SMA male connectors that mate with standard SMA female interfaces in 50 Ohm systems. Both ends use SMA series connectors with 50 Ohm impedance, which supports common RF interconnect requirements in electronics assemblies. This makes the cable suitable for linking modules, instruments, and subsystems that use standard SMA ports in labs or integrated hardware. Engineers should still confirm mechanical clearance and overall cable path requirements because the right angle connector bodies change the cable exit direction.

What makes PE-C240 coax useful in this cable assembly?

PE-C240 coax gives the PE38624-48 a flexible cable construction that supports 50 Ohm routing in low loss RF cable assemblies. The cable works with brass SMA right angle connectors and Teflon dielectrics to create a practical interconnect for compact electronic layouts. Engineers use this style when they need a cable that can be routed through equipment with limited space near the port. It is a solid fit for general RF integration, internal equipment wiring paths, and bench connections that benefit from angled cable exits.
