SMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

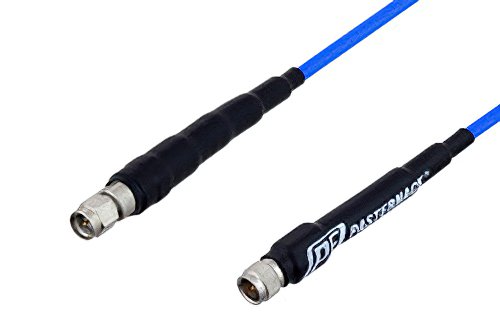

SMA Male to Push-On SMA Male Precision Cable Using PE-P141 Coax, LF Solder, RoHS

Product ID: PE3CA1130
SMA Male to Push-On SMA Male Precision Cable Using PE-P141 Coax, LF Solder, RoHS

Image Views:  SMA Male to Push-On SMA Male Precision Cable Using PE-P141 Coax, LF Solder, RoHS high resolution
Zoom


Click for:PE3CA1130 Datasheet
Click for:PE3CA1130 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P141
RF Cable TypePE-P141
RF Cable Impedance50


SMA Male to Push-On SMA Male Precision Cable Using PE-P141 Coax, RoHS

PE3CA1130 is a SMA male to SMA male cable using PE-P141 coax. This Pasternack SMA male to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1130 SMA male to SMA male cable assembly is constructed with PE-P141 coax and the maximum VSWR is 1.38:1.
