SMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

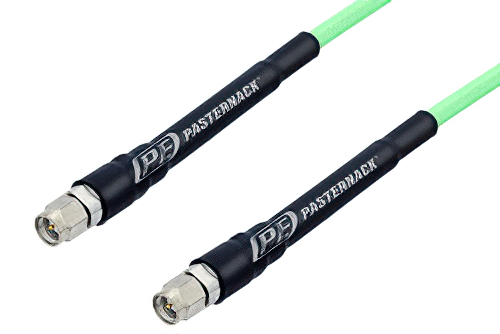

SMA Male to SMA Male Low Loss Test Cable Using PE-P142LL Coax, RoHS

Product ID: PE341
SMA Male to SMA Male Low Loss Test Cable Using PE-P142LL Coax, RoHS


Image Views:  SMA Male to SMA Male Low Loss Test Cable Using PE-P142LL Coax, RoHS high resolution
Zoomalternate image

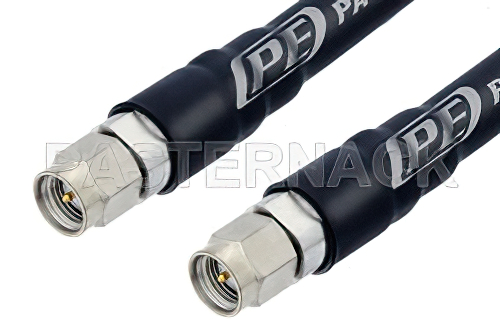

View 2


Click for:PE341 Datasheet
Click for:PE341 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P142LL
RF Cable TypePE-P142LL
RF Cable Impedance50


SMA Male to SMA Male Cable Using PE-P142LL Coax

PE341 is a SMA male to SMA male cable using PE-P142LL coax. This Pasternack SMA male to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE341 SMA male to SMA male cable assembly is constructed with PE-P142LL coax.
