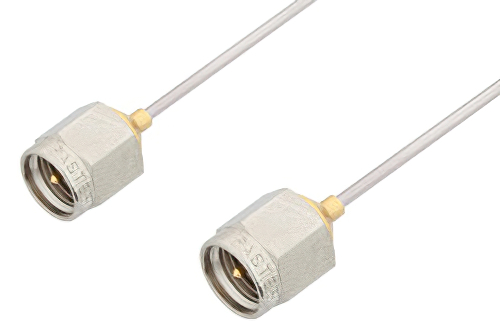

SMA Male to SMA Male Cable 60 Inch Length Using PE-SR047AL Coax

Product ID: PE3387-60

Pricing

QuantityPrice
1-24$130.99
25-49$124.44
50-99$117.89
100+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 16
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberPE-SR047AL
RF Cable TypePE-SR047AL
RF Cable Impedance50 Ohm
Length60 inches

Description

SMA Male to SMA Male Cable 60 Inch Length Using PE-SR047AL Coax

The PE3387-60 is a SMA male to male semi-rigid cable assembly designed for in-series RF interconnects, offering 50 Ohm impedance and DC to 12.4 GHz operation. It supports RF system integration, bench setups, and fixed cable routing where stable SMA connections are required in compact assemblies. Brass connector bodies with Gold plating and PE-SR047AL coax support controlled performance, while PTFE and Teflon dielectrics help maintain signal transmission.

Pasternack RF coax cable assembly is built with SMA cable connection on one end and SMA cable connection on the other. Our SMA to SMA cable assemblies have a male gender on end 1 and male on end 2. This SMA to SMA cable is a male to male coax assembly, PE3387-60, can also be known as a SMA plug to SMA plug cable assembly and will be shipped same-day as it is purchased.

SMA plug to SMA plug cable assembly PE3387-60 is built with PE-SR047AL which is a semi-rigid coax type. The Pasternack semi-rigid SMA cable assembly is manufactured with SMA to SMA cable connectors, has a 50 Ohm impedance and is single shielded. RF specs on this 12.4 GHz maximum frequency SMA male to SMA male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions.

SMA plug to SMA plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality SMA to SMA cable assembly for quick shipment worldwide. Variations of SMA cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this SMA male to SMA male cable 60 inch length using PE-SR047AL coax.

Frequently Asked Questions

What is the PE3387-60 SMA cable assembly used for?

The PE3387-60 is a SMA male to SMA male semi-rigid cable assembly used to connect in-series 50 Ohm RF interfaces. It uses PE-SR047AL coax and supports DC to 12.4 GHz operation with straight SMA connectors on both ends. Engineers use it in bench setups, prototypes, and integrated assemblies where controlled cable routing is important. Its semi-rigid construction helps hold a defined path in compact systems that do not need repeated cable flexing.

When should I choose a semi-rigid SMA cable like PE3387-60?

The PE3387-60 is a good choice when an RF design needs a formed cable path between SMA interfaces in limited space. It combines PE-SR047AL semi-rigid coax, 50 Ohm impedance, and DC to 12.4 GHz performance for stable in-series connections. Engineers often choose this style for test fixtures, modules, and prototypes that benefit from fixed routing. It is better suited to shaped installations than applications that require frequent movement or continuous cable flexing.

Is PE3387-60 compatible with standard SMA interfaces?

The PE3387-60 is built with standard SMA male connectors on both ends for use with standard SMA female interfaces. Each connector is straight, standard polarity, and rated at 50 Ohm to match common RF system requirements. This makes the assembly suitable for instrument connections, subsystem links, and general electronics integration tasks. Engineers should still confirm mating interface, clearance, and frequency requirements before installation in a completed design.

Why use an SMA male-to-male cable assembly instead of separate connectors and cable?

It combines matched connectors, solder attachment, and PE-SR047AL coax into one finished 50 Ohm interconnect. This helps engineers speed prototype builds and bench setups where a ready cable is more practical than hand assembly. It also supports consistent installation when a straightforward in-series SMA connection is required between existing female ports.
