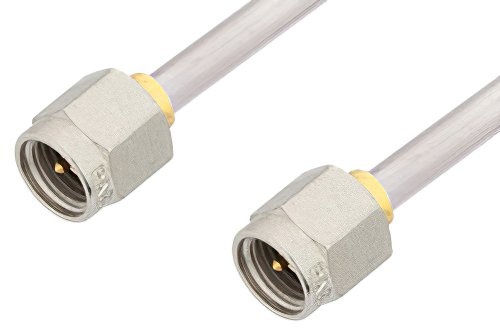

SMA Male to SMA Male Cable Using PE-SR402AL Coax

Product ID: PE34180
SMA Male to SMA Male Cable Using PE-SR402AL Coax

Image Views:  SMA Male to SMA Male Cable Using PE-SR402AL Coax high resolution
Zoom


Click for:PE34180 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-SR402AL
RF Cable TypePE-SR402AL
RF Cable Impedance50


SMA Male to SMA Male Cable Using PE-SR402AL Coax

PE34180 is a SMA male to SMA male cable using PE-SR402AL coax. This Pasternack SMA male to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to male SMA cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE34180 SMA male to SMA male cable assembly is constructed with PE-SR402AL coax and the maximum VSWR is 1.4:1.
