SMA Male to SMA Male Right Angle Cable Using PE-SR405FL Coax

Product ID: PE39417

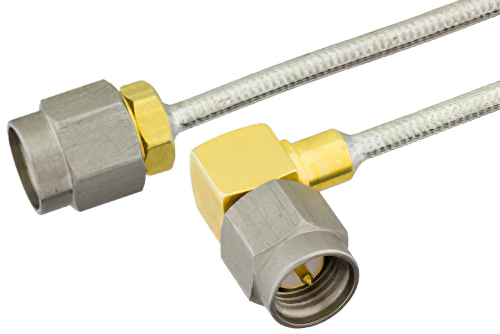

SMA Male to SMA Male Right Angle Cable Using PE-SR405FL Coax

Image Views:  SMA Male to SMA Male Right Angle Cable Using PE-SR405FL Coax high resolution
Zoom


Click for:PE39417 Datasheet
Click for:PE39417 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.9 in.12 in.18 in.24 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.

Click on the below images to access KitBOM product pages:


PE44690PE-SR405FLPE44692KitBOM Datasheet

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberPE-SR405FL
RF Cable TypePE-SR405FL
RF Cable Impedance50 Ohm


SMA Male to SMA Male Right Angle Cable Using PE-SR405FL Coax, LF Solder

PE39417 is a SMA male to SMA male right angle cable using PE-SR405FL coax. This Pasternack SMA male to SMA male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2. SMA to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA to male SMA right angle cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE39417 SMA male to SMA male right angle cable assembly is constructed with PE-SR405FL coax.
