SMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

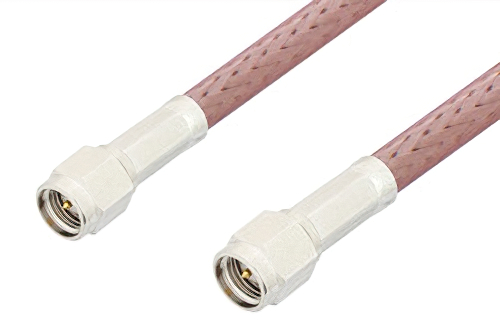

SMA Male to SMA Male Cable Using RG142 Coax, RoHS

Product ID: PE3385LF
SMA Male to SMA Male Cable Using RG142 Coax, RoHS

Image Views:  SMA Male to SMA Male Cable Using RG142 Coax, RoHS high resolution
Zoom


Click for:PE3385LF Datasheet
Click for:PE3385LF RoHS Cert
Click for:PE3385LF REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG142B/U
RF Cable TypeRG142
RF Cable Impedance50


SMA Male to SMA Male Cable Using RG142 Coax, RoHS

PE3385LF is a SMA male to SMA male cable using RG142 coax. This Pasternack SMA male to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3385LF SMA male to SMA male cable assembly is constructed with RG142 coax and the maximum VSWR is 1.4:1.
