SMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male to Reverse Polarity SMA Male Cable Using RG174 Coax, RoHS

Product ID: PE34331LF

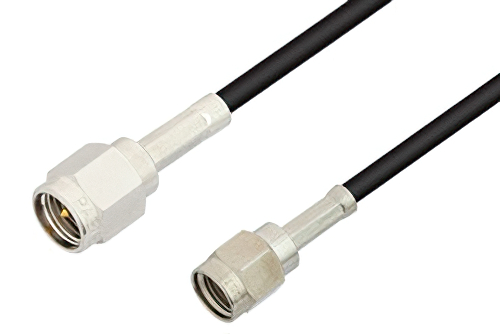

SMA Male to Reverse Polarity SMA Male Cable Using RG174 Coax, RoHS

Image Views:  SMA Male to Reverse Polarity SMA Male Cable Using RG174 Coax, RoHS high resolution
Zoom


Click for:PE34331LF Datasheet
Click for:PE34331LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Reverse Polarity
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50


SMA Male to Reverse Polarity SMA Male Cable Using RG174 Coax, RoHS

PE34331LF is a SMA male to reverse polarity SMA male cable using RG174 coax. This Pasternack SMA male to reverse polarity SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to reverse polarity male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34331LF SMA male to SMA reverse polarity male cable assembly is constructed with RG174 coax.
