SMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

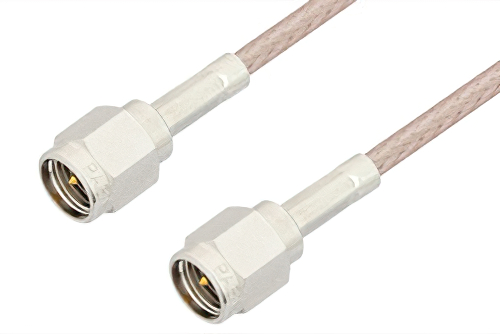

SMA Male to SMA Male Cable Using 75 Ohm RG179 Coax, RoHS

Product ID: PE3739LF
SMA Male to SMA Male Cable Using 75 Ohm RG179 Coax, RoHS

Image Views:  SMA Male to SMA Male Cable Using 75 Ohm RG179 Coax, RoHS high resolution
Zoom


Click for:PE3739LF Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG179B/U
RF Cable TypeRG179
RF Cable Impedance75


SMA Male to SMA Male Cable Using 75 Ohm RG179 Coax, RoHS

PE3739LF is a SMA male to SMA male cable using RG179 coax. This Pasternack SMA male to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to male SMA cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3739LF SMA male to SMA male cable assembly is constructed with RG179 coax and the maximum VSWR is 1.4:1.
