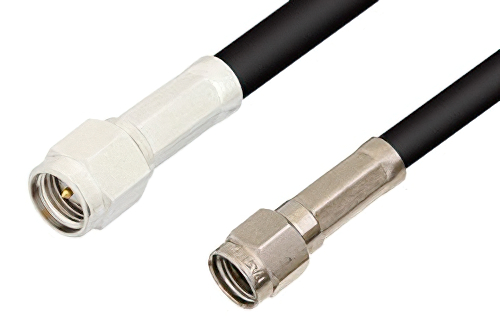

SMA Male to Reverse Polarity SMA Male Cable Using RG223 Coax

Product ID: PE34398
SMA Male to Reverse Polarity SMA Male Cable Using RG223 Coax

Image Views:  SMA Male to Reverse Polarity SMA Male Cable Using RG223 Coax high resolution
Zoom


Click for:PE34398 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Reverse Polarity
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG223/U
RF Cable TypeRG223
RF Cable Impedance50


SMA Male to Reverse Polarity SMA Male Cable Using RG223 Coax

PE34398 is a SMA male to reverse polarity SMA male cable using RG223 coax. This Pasternack SMA male to reverse polarity SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to reverse polarity male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34398 SMA male to SMA reverse polarity male cable assembly is constructed with RG223 coax.
