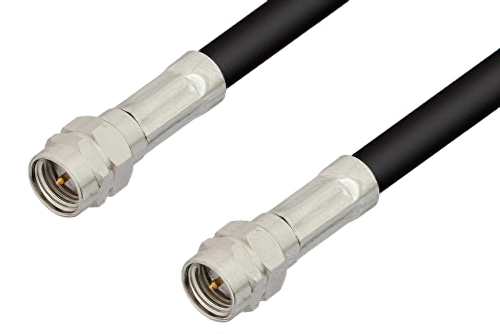

Reverse Thread SMA Male to Reverse Thread SMA Male Cable Using RG223 Coax

Product ID: PE35369
Reverse Thread SMA Male to Reverse Thread SMA Male Cable Using RG223 Coax

Image Views:  Reverse Thread SMA Male to Reverse Thread SMA Male Cable Using RG223 Coax high resolution
Zoom


Click for:PE35369 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Reverse Thread
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Reverse Thread
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG223/U
RF Cable TypeRG223
RF Cable Impedance50


Reverse Thread SMA Male to Reverse Thread SMA Male Cable Using RG223 Coax

PE35369 is a reverse thread SMA male to reverse thread SMA male cable using RG223 coax. This Pasternack reverse thread SMA male to reverse thread SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our reverse thread male SMA to reverse thread male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE35369 SMA reverse thread male to SMA reverse thread male cable assembly is constructed with RG223 coax.
