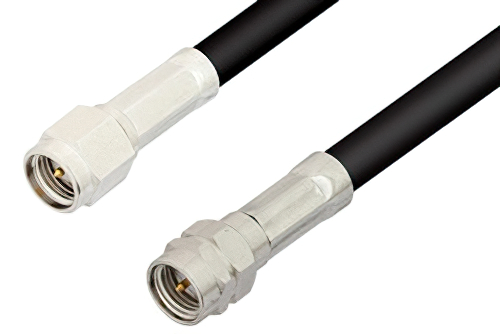

SMA Male to Reverse Thread SMA Male Cable 24 Inch Length Using RG223 Coax

Product ID: PE35371-24

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$77.09
25-49$73.24
50-99$69.38
100-249$66.30
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Call for Availability
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Reverse Thread
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG223/U
RF Cable TypeRG223
RF Cable Impedance50 Ohm
Length24 inches

Description

SMA Male to Reverse Thread SMA Male Cable 24 Inch Length Using RG223 Coax

The PE35371-24 is a SMA male to reverse thread SMA male cable designed for RG223/U coax, offering 50 Ohm impedance. It connects in-series RF interfaces in electronic systems that need straight cable routing and a reverse thread SMA interface. Brass connector bodies with gold-plated brass contacts support reliable mating, while PVC-jacketed flexible RG223/U coax fits general RF interconnect tasks.

Pasternack RF coax cable assembly is built with SMA cable connection on one end and reverse thread SMA cable connection on the other. Our SMA to reverse thread SMA cable assemblies have a male gender on end 1 and male on end 2. This SMA to reverse thread SMA cable is a male to male coax assembly, PE35371-24, can also be known as a SMA plug to reverse thread SMA plug cable assembly and will be shipped same-day as it is purchased.

SMA plug to reverse thread SMA plug cable assembly PE35371-24 is built with RG223 which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to SMA cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this SMA male to reverse thread SMA male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE35371-24 can also be used in the other direction and will be reverse thread SMA male to SMA male cable assembly if the opposite connectivity is required.

SMA plug to SMA reverse thread plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality SMA to SMA cable assembly for quick shipment worldwide. Variations of SMA cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this SMA male to reverse thread SMA male cable 24 inch length using RG223 coax.

Frequently Asked Questions

What is the PE35371-24 RF cable assembly used for?

The PE35371-24 is an SMA male to reverse thread SMA male cable assembly used for in-series RF interconnections in 50 Ohm systems. It uses flexible RG223/U coax with straight connectors, brass bodies, gold-plated brass contacts, and a PVC jacket for general electronics work. Engineers use this cable when one device requires a standard SMA male and the mating side requires a reverse thread SMA male interface. It is useful on benches, prototypes, and integrated assemblies where connector compatibility matters as much as cable flexibility.

When would I need a reverse thread SMA cable?

A reverse thread SMA cable like the PE35371-24 is needed when equipment includes a reverse thread SMA interface that will not mate with standard hardware. This assembly combines one SMA male end with one reverse thread SMA male end and maintains a 50 Ohm signal path through RG223/U coax. Engineers often select it during equipment integration, replacement work, or prototype builds where connector thread style is already defined by the device. Using the correct thread type helps avoid mating errors and reduces delays during setup and service.

Is PE35371-24 suitable for general RF and electronics integration?

The PE35371-24 is suitable for general RF and electronics integration where a flexible 50 Ohm cable assembly is required between SMA-based interfaces. It is built with RG223/U coax, straight connector geometry, brass connector bodies, and gold-plated brass contacts for practical interconnect use. System integrators can use it to connect modules, instruments, and subassemblies that include a reverse thread SMA requirement on one side. Its straightforward configuration makes it useful for lab setups, prototype validation, and routine equipment assembly tasks.

What makes PE35371-24 different from a standard SMA male to SMA male cable?

The PE35371-24 differs from a standard SMA male to SMA male cable because one end uses a reverse thread SMA male interface. It still provides a 50 Ohm flexible RG223/U cable assembly with straight connectors, brass bodies, gold-plated brass contacts, and a PVC jacket. That mixed interface design is important when a device uses reverse thread hardware and cannot accept a conventional SMA thread style. Choosing this configuration helps engineers connect the intended equipment without adapters that can complicate routing or inventory.
