SMA Male to SMA Male Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male to SMA Male Right Angle Cable Using RG316-DS Coax, LF Solder, RoHS

Product ID: PE3344LF

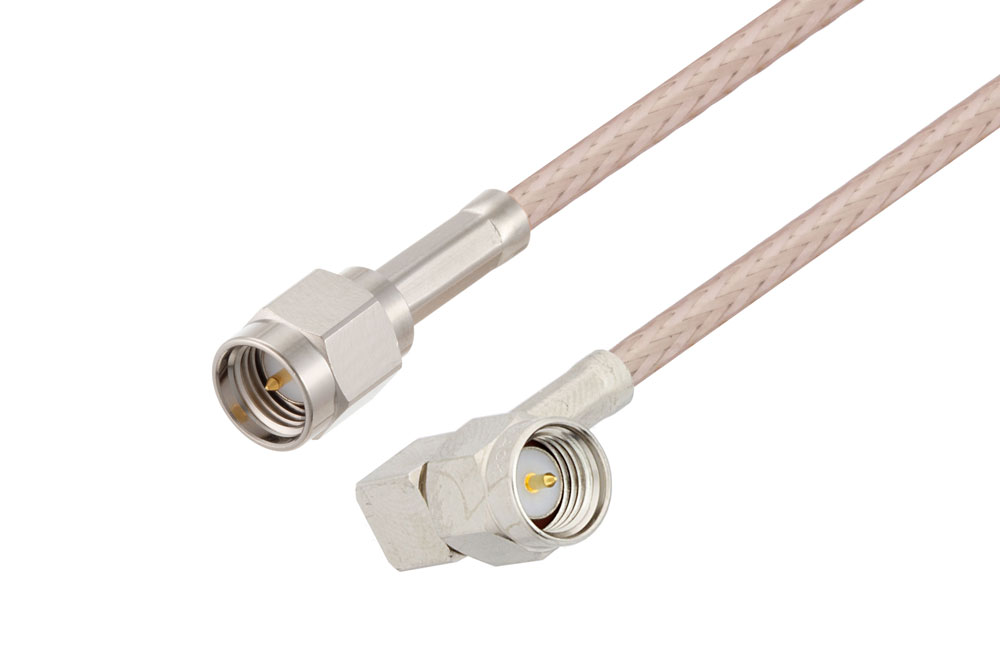

SMA Male to SMA Male Right Angle Cable Using RG316-DS Coax, LF Solder, RoHS

Image Views:  SMA Male to SMA Male Right Angle Cable Using RG316-DS Coax, LF Solder, RoHS high resolution
Zoom


Click for:PE3344LF Datasheet
Click for:PE3344LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50


SMA Male to SMA Male Right Angle Cable Using RG316-DS Coax, RoHS

PE3344LF is a SMA male to SMA male right angle cable using RG316-DS coax. This Pasternack SMA male to SMA male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2. SMA to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA to male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3344LF SMA male to SMA male right angle cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
