SMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male to SMA Male Cable Using 53 Ohm RG55 Coax

Product ID: PE3572LF

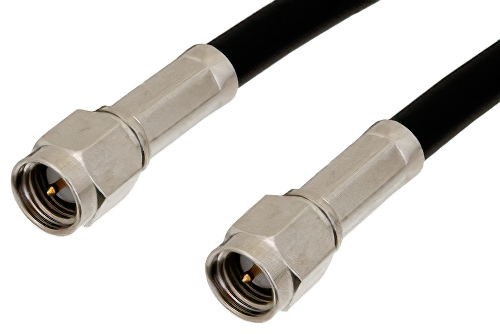

SMA Male to SMA Male Cable Using 53 Ohm RG55 Coax

Image Views:  SMA Male to SMA Male Cable Using 53 Ohm RG55 Coax high resolution
Zoom


Click for:PE3572LF Datasheet
Click for:PE3572LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG55B/U
RF Cable TypeRG55
RF Cable Impedance53


SMA Male to SMA Male Cable Using 53 Ohm RG55 Coax

PE3572LF is a SMA male to SMA male cable using RG55 coax. This Pasternack SMA male to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our male SMA to male SMA cable assembly uses a flexible cable type that is 53 Ohm. Pasternack PE3572LF SMA male to SMA male cable assembly is constructed with RG55 coax and the maximum VSWR is 1.4:1.
