SMB to SMA Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

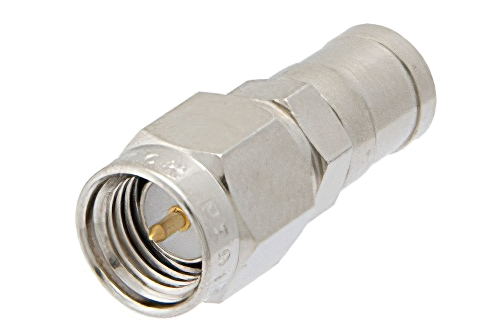

SMA Male to SMB Plug Adapter

Product ID: PE9144
SMA Male to SMB Plug Adapter

Image Views:  SMA Male to SMB Plug Adapter high resolution
Zoom


Click for:PE9144 Datasheet
Click for:PE9144 RoHS Cert
Click for:PE9144 REACH Cert
Available Quantity: 191
Pricing Table
QUANTITYPRICE
1-24$85.64
25-49$81.36
50-99$77.08
100-249$73.65
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMB
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max4 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


SMA Male to SMB Plug Adapter

SMA adapter PE9144 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to SMB adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 4 GHz.

SMA male to SMB plug adapter is one of the many RF components that ship same day as they are ordered. PE9144 male SMA to plug SMB adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our male SMA to plug SMB adapter PE9144 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMA to SMB radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
