SSMA Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male to SSMA Male Cable Using RG174 Coax

Product ID: PE35430

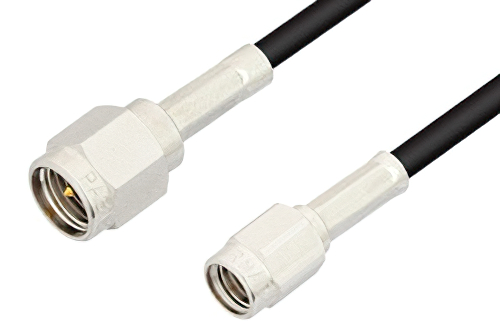

SMA Male to SSMA Male Cable Using RG174 Coax

Image Views:  SMA Male to SSMA Male Cable Using RG174 Coax high resolution
Zoom


Click for:PE35430 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SSMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50


SMA Male to SSMA Male Cable Using RG174 Coax

PE35430 is a SMA male to SSMA male cable using RG174 coax. This Pasternack SMA male to SSMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SSMA for connector 2.

Our male SMA to male SSMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE35430 SMA male to SSMA male cable assembly is constructed with RG174 coax and the maximum VSWR is 1.4:1.
