SSMC Jack to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

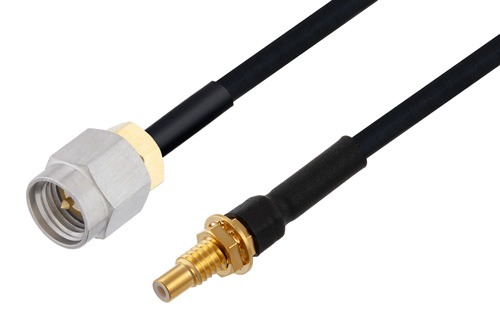

SMA Male to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax

Product ID: PE3C4445
SMA Male to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax

Image Views:  SMA Male to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax high resolution
Zoom


Click for:PE3C4445 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SSMC
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250 Ohm
RF Cable Part NumberPE-SR405FLJ
RF Cable TypePE-SR405FLJ
RF Cable Impedance50 Ohm


SMA Male to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax

PE3C4445 is a SMA male to SSMC jack bulkhead cable using PE-SR405FLJ coax. This Pasternack SMA male to SSMC jack bulkhead cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SSMC for connector 2.

Our male SMA to jack SSMC bulkhead cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3C4445 SMA male to SSMC jack bulkhead cable assembly is constructed with PE-SR405FLJ coax and the maximum VSWR is 1.4:1.
