SMA Male Right Angle to SSMC Plug Cable Using RG316-DS Coax

Product ID: PE3C4438
SMA Male Right Angle to SSMC Plug Cable Using RG316-DS Coax

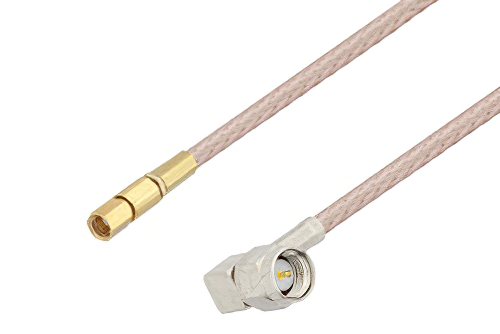

Image Views:  SMA Male Right Angle to SSMC Plug Cable Using RG316-DS Coax high resolution
Zoom


Click for:PE3C4438 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SSMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50 Ohm


SMA Male Right Angle to SSMC Plug Cable Using RG316-DS Coax

PE3C4438 is a SMA male right angle to SSMC plug cable using RG316-DS coax. This Pasternack SMA male right angle to SSMC plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SSMC for connector 2. SMA right angle to SSMC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to plug SSMC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4438 SMA male right angle to SSMC plug cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.5:1.
