SMA Male to SSMC Plug Right Angle Cable Using RG316 Coax

Product ID: PE3C4406
SMA Male to SSMC Plug Right Angle Cable Using RG316 Coax

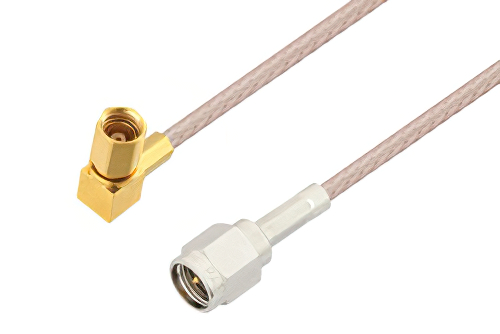

Image Views:  SMA Male to SSMC Plug Right Angle Cable Using RG316 Coax high resolution
Zoom


Click for:PE3C4406 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SSMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50 Ohm


SMA Male to SSMC Plug Right Angle Cable Using RG316 Coax

PE3C4406 is a SMA male to SSMC plug right angle cable using RG316 coax. This Pasternack SMA male to SSMC plug right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SSMC for connector 2. SMA to SSMC right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA to plug SSMC right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4406 SMA male to SSMC plug right angle cable assembly is constructed with RG316 coax and the maximum VSWR is 1.6:1.
