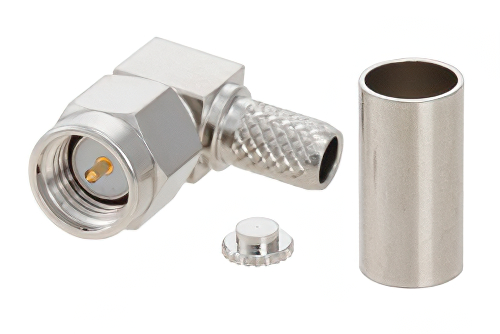

SMA Male Right Angle Connector Crimp/Solder Attachment for RG55, RG142, RG223, RG400

Name: SMA Male Right Angle Connector Crimp/Solder Attachment for RG55, RG142, RG223, RG400
Brand: Pasternack
SKU: PE4002

Product ID: PE4002

Pricing

Quantity	Price
1-24	$24.39
25-49	$23.17
50-99	$21.95
100-249	$20.98
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 10,807

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	SMA
Connector Gender	Male
Impedance	50 Ohm
Body Style	Right Angle
Attachment Method	Crimp/Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	12.4 GHz
Interface Type 1	RG55
Interface Type 2	RG142
Interface Type 3	RG223
Interface Type 4	RG400
Interface Type 5	RG141

Description

SMA Male Right Angle Connector Crimp/Solder Attachment for RG55, RG142, RG223, RG400, RG141

PE4002 SMA male right angle coaxial connector has an interface type of RG55, RG142, RG223, RG400, RG141 and a 50 Ohm impedance. Pasternack SMA male connector uses shield/contact crimp/solder as an attachment method. Our male SMA right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack right angle SMA male coaxial connector has a PTFE dielectric type and a VSWR of 1.23. The Pasternack SMA coaxial connector has a brass body with nickel plating. Our PE4002 SMAright angle connector uses brass contact. This SMA male right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle male SMA connector will ship the same day as purchased. Our SMA right angle male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMA connector cable assemblies that will ship the same day as well.
