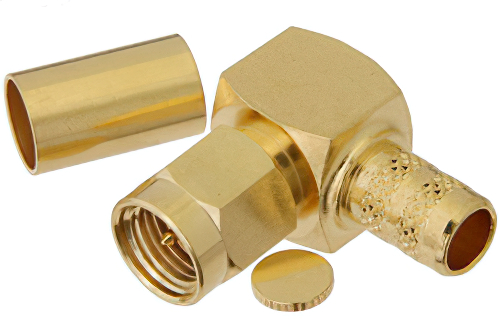

PE44638 SMA male right angle coaxial connector has an interface type of SMA male which is compatible with PE-C240, RG8X, .240 inch, LMR®-240, LMR®-240-DB and LMR®-240-UF cables and has an impedance of 50 Ohms. Pasternack’s SMA male connector uses crimp/solder as an attachment method. Our male SMA right angle coaxial connector provides a maximum frequency of 12.4 GHz. This SMA male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack right angle SMA male coaxial connector has a PTFE dielectric type. Pasternack’s SMA coaxial connector has a brass body with gold plating. Our PE44638 SMA right angle connector uses a gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE44638 features a 3 µin minimum body plating specification. The PE44638 SMA connector operates at a temperature range of -65 to 165 deg C. This right angle SMA connector has a gold inner contact plating. Our right angle SMA male connector has a length of 0.91 inches, a width of 0.379 inches, and a weight of 0.023 lbs. This threaded SMA male coaxial connector features a gold plated brass coupling nut.
This Pasternack right angle male SMA connector will ship the same business day as purchased. Our SMA right angle male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
* LMR® is a registered trademark of Times Microwave Systems.
