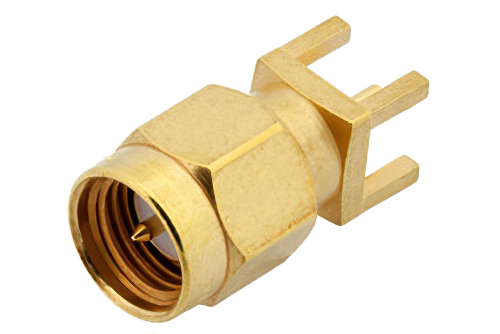

SMA Male Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing

Product ID: PE4525

Pricing

QuantityPrice
1-24$28.39
25-49$26.97
50-99$25.55
100-249$24.42
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 1,325
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMA
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency18 GHz
Interface Type 1Thru Hole

Description

SMA Male Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing

PE4525 SMA male pcb connector has an interface type of thru hole and a 50 Ohm impedance. Pasternack SMA male connector uses shield/contact solder as an attachment method. Our male SMA pcb connector provides a minimum frequency of DC and a maximum frequency of 18 GHz.

The Pasternack SMA male pcb connector has a PTFE dielectric type and a VSWR of 1.3. The Pasternack SMA pcb connector has a brass body with gold plating. Our PE4525 SMA connector uses brass contact. This SMA male pcb RF connector is RoHS and REACH compliant.

This Pasternack male SMA connector will ship the same day as purchased. Our SMA male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMA connector cable assemblies that will ship the same day as well.
