SMA Male Right Angle to TNC Female Bulkhead Cable Using PE-SR405FLJ Coax

Product ID: PE39490

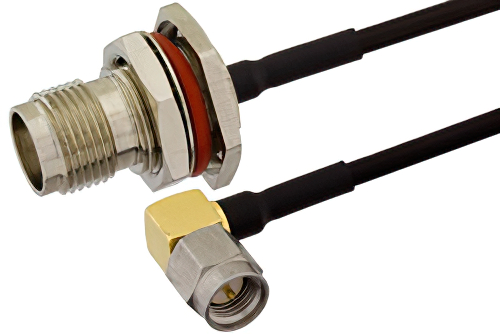

SMA Male Right Angle to TNC Female Bulkhead Cable Using PE-SR405FLJ Coax

Image Views:  SMA Male Right Angle to TNC Female Bulkhead Cable Using PE-SR405FLJ Coax high resolution
Zoom


Click for:PE39490 Datasheet
Click for:PE39490 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.9 in.12 in.18 in.24 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.

Click on the below images to access KitBOM product pages:


PE44692PE-SR405FLJPE44714KitBOM Datasheet

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2TNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250 Ohm
RF Cable Part NumberPE-SR405FLJ
RF Cable TypePE-SR405FLJ
RF Cable Impedance50 Ohm


SMA Male Right Angle to TNC Female Bulkhead Cable Using PE-SR405FLJ Coax, LF Solder

PE39490 is a SMA male right angle to TNC female bulkhead cable using PE-SR405FLJ coax. This Pasternack SMA male right angle to TNC female bulkhead cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm TNC for connector 2. SMA right angle to TNC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to female TNC bulkhead cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE39490 SMA male right angle to TNC female bulkhead cable assembly is constructed with PE-SR405FLJ coax.
