TNC Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male to TNC Male Cable Using RG402 Coax

Product ID: PE3089

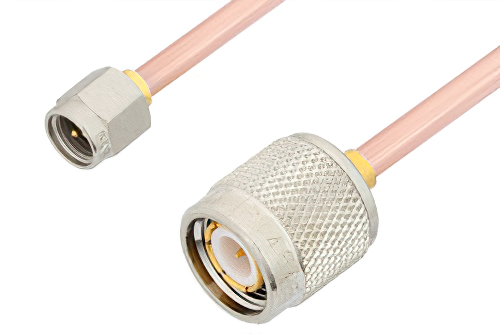

SMA Male to TNC Male Cable Using RG402 Coax

Image Views:  SMA Male to TNC Male Cable Using RG402 Coax high resolution
Zoom


Click for:PE3089 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG402/U
RF Cable TypeRG402
RF Cable Impedance50


SMA Male to TNC Male Cable Using RG402 Coax

PE3089 is a SMA male to TNC male cable using RG402 coax. This Pasternack SMA male to TNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm TNC for connector 2.

Our male SMA to male TNC cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3089 SMA male to TNC male cable assembly is constructed with RG402 coax.
