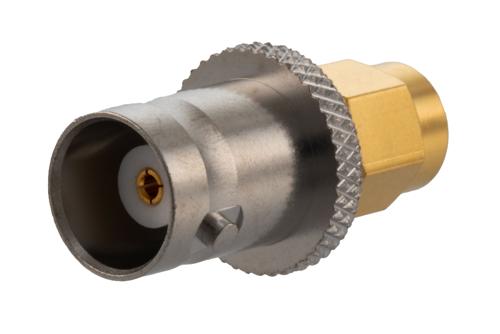

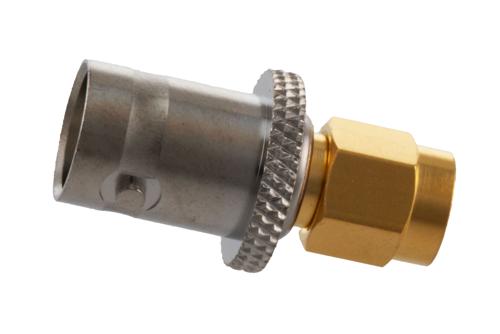

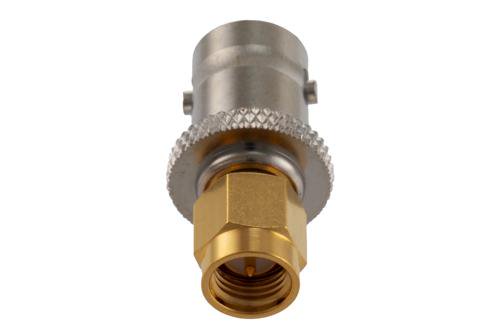

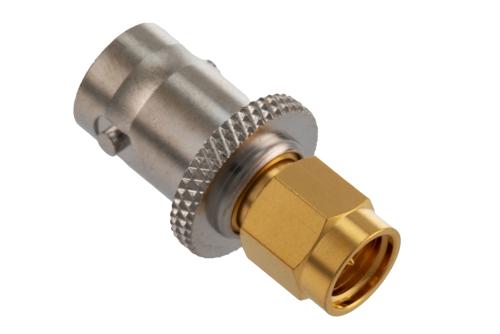

The SMA to BNC adapter PE5166 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance and a maximum VSWR of 1.2:1. This RF adapter has a male to female gender configuration, which provides easier connections in tighter spaces. Our SMA to BNC adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 8 GHz.
This SMA male to BNC female adapter is one of the many RF components that ship the same business day as they are ordered. The PE5166 male SMA to female BNC adapter has a straight body. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. Our adapter has a maximum insertion loss of 0.141 dB. This RF adapter has a 0.988-inch length, 0.513-inch width, and 0.02 lbs weight.
The PE5166 adapter from Pasternack is made from a brass connector body and has a bronze center contact. Our SMA male to BNC female radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This RF adapter has an operating temperature range of -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of SMA to BNC radio frequency adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 8 GHz RF adapter that meets your requirements.
