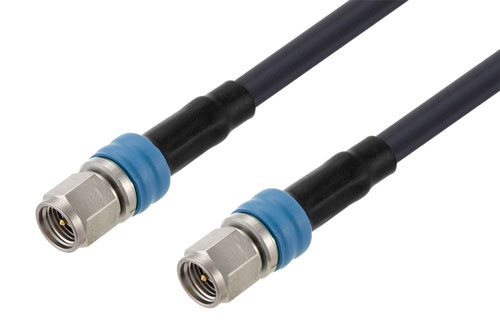

SMA Male to SMA Male Low Loss Cable Using LMR-195 Coax With Times Microwave Components, Blue Heat Shrink Indicator , LF Solder

Product ID: PE3C3055LF/BL

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications.
Connector 1 Series	SMA
Connector 1 Gender	Male
Connector 1 Polarity	Standard
Connector Angle 1	Straight
Connector 1 Impedance	50 Ohm
Connector 2 Series	SMA
Connector 2 Gender	Male
Connector 2 Polarity	Standard
Connector Angle 2	Straight
Connector 2 Impedance	50 Ohm
Connector 1 Body Material	Passivated Stainless Steel
RF Cable Part Number	LMR-195
RF Cable Type	LMR-195
RF Cable Impedance	50 Ohm

Description

SMA Male to SMA Male Low Loss Cable Using LMR-195 Coax With Times Microwave Components, Blue Heat Shrink Indicator , LF Solder

Radio frequency assembly SMA male to SMA male low loss cable using LMR-195 coax with Times Microwave components, blue heat shrink indicator , LF solder from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The SMA male to SMA male low loss cable using LMR-195 coax with Times Microwave components, blue heat shrink indicator , LF solder, SMA cable like our other Pasternack coaxial cable assemblies, will ship the same day and any custom SMA to SMA cable assembly orders will ship same day as well.

Pasternack RF coax low loss cable assembly is built with SMA cable connection on one end and SMA cable connection on the other. Our low loss SMA to SMA cable assemblies have a male gender on end 1 and male on end 2. PE3C3055LF/BL can also be known as a low loss SMA plug to SMA plug cable assembly and will be shipped same-day as it is purchased.

SMA plug to SMA plug cable assembly PE3C3055LF/BL is built with LMR-195 which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to SMA cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this 6 GHz maximum frequency SMA male to SMA male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions.

Low loss SMA plug to SMA plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality SMA to SMA cable assembly for quick shipment worldwide. Variations of SMA cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this SMA male to SMA male low loss cable using LMR-195 coax with Times Microwave components, blue heat shrink indicator , LF solder.
